Optima PDUs

Product Selector

MPD 85-012
1U PDU Specs

Power Outlets

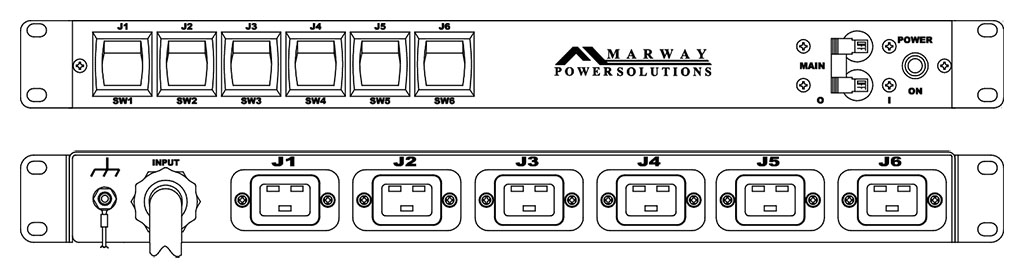

Front Panel
None
Rear Panel
(6) C19, 120V (S)
Other Panels
None
Icon of outlet
C19
Power Input
Voltage
120 Vac
Phase
Single Phase
Frequency
50/60 Hz
Max Current
30 Amps
Max Load
2.88 KVA
Connection
L5-30P, 4 ft cord, 3-wire 10 ga, SO jacket (Rear panel)
Voltage Monitor
None
Current Monitor
None
Icon of inlet
L5-30P
Power Protection
Spike/Surge
Yes
EMI Filter
None
Over Current
(1) 30A Main Breaker
Remote, Interlocks, and Environment Sensors
Local EPO
None
Remote EPO Type
Interlocks
0
Temperature
0
Humidity
0
Communications and Interfaces
Display
None
Serial
None
Ethernet
None
Protocols
None
Physical
Layout
1U
Dimensions
1U x 19" W x 4.5" D
Materials
Chassis: Steel
Finishes
Chassis: Zinc plated Gold
FrontPanel: Zinc plated Gold
Operating Conditions
Temperature
32° to 122° Fahrenheit
Humidity
5% to 85% Relative Humidity
Elevation
6,562 feet
Conformance
Warranty
See warranty page for details
Conformances
no specific certifications

Notes:

Read the product Feature Descriptions for important details. Specifications are subject to change without notice.

[1] Certain details of the circuitry may only be revealed by the schematic (available separately).

[2] All ratings of amps are maximum. See model details for deratings.

[3] Feature codes: Enet = Ethernet, VMtr = volts meter, AMtr = amps meter, rEPO = remote EPO, Seq = outlet sequencing, EMI = EMI filter, Srg = surge suppression

[4] Outlet Codes: (S) = switched, (V) = monitored voltage, (A) = monitored amps. Check Feature Descriptions for details.
