Optima PDUs

Product Selector

MPD 520085-000
1U PDU Specs

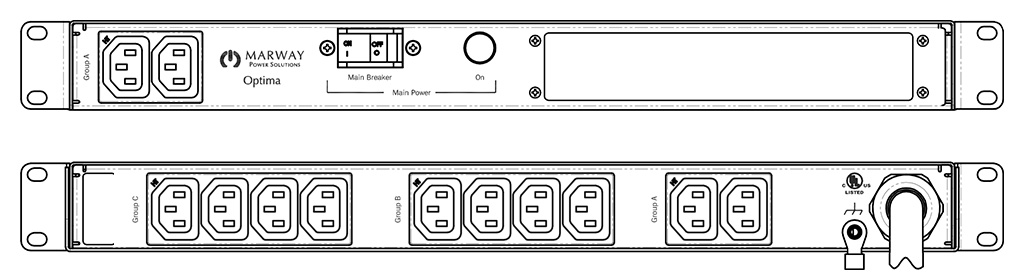

Power Outlets
Front Panel
(2) C13, 200-240V
Rear Panel
(10) C13, 200-240V
Other Panels
None
C13
Power Input
Voltage
200-240 Vac
Phase
Single Phase
Frequency
50/60 Hz
Max Current
30 Amps
Max Load
5.76 KVA
Connection
L6-30P, 9 ft cord, 3-wire 10 ga, SJT jacket (Rear panel)
Voltage Monitor
None
Current Monitor
None
L6-30P
Power Protection
Spike/Surge
Yes
EMI Filter
None
Over Current
(2) 15A Circuit Breaker
Remote, Interlocks, and Environment Sensors
Local EPO
None
Remote EPO Type
None  ()
Interlocks
0
Temperature
0
Humidity
0
Communications and Interfaces
Display
None
Serial
None
Ethernet
None
Protocols
None
Physical
Layout
1U
Dimensions
1U x 19" W x 9" D
Materials
Chassis: Steel
Finishes
Chassis: Zinc plated Black
FrontPanel: Zinc plated Black
Operating Conditions
Temperature
32° to 122° Fahrenheit
Humidity
5% to 85% Relative Humidity
Elevation
6,562 feet
Conformance
Warranty
See warranty page for details
Conformances
UL

Notes:

Read the product Feature Descriptions for important details. Specifications are subject to change without notice.

[1] Certain details of the circuitry may only be revealed by the schematic (available separately).

[2] All ratings of amps are maximum. See model details for deratings.

[3] Feature codes: Enet = Ethernet, VMtr = volts meter, AMtr = amps meter, rEPO = remote EPO, Seq = outlet sequencing, EMI = EMI filter, Srg = surge suppression

[4] Outlet Codes: (S) = switched, (V) = monitored voltage, (A) = monitored amps. Check Feature Descriptions for details.
