Optima™ PDUs
Product SelectorMPD 411409
2U PDU Specs

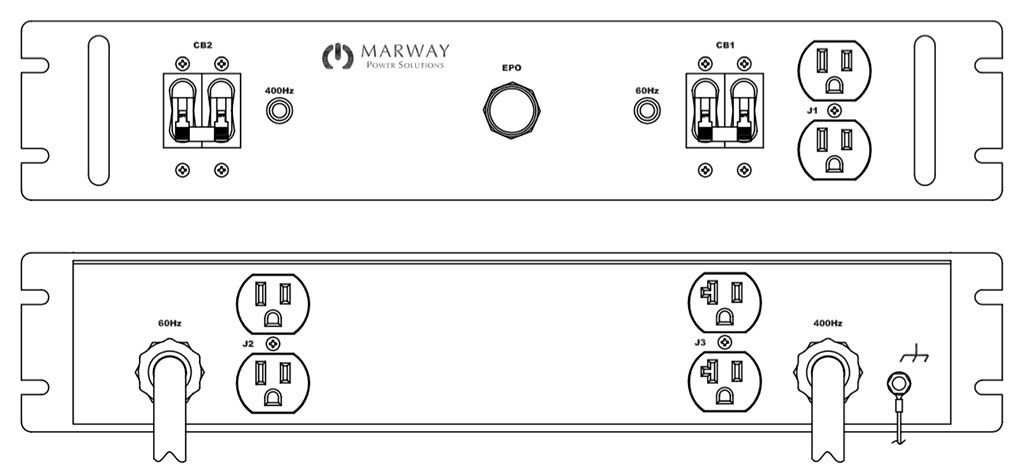

Power Outlets
Front Panel
(2) 5-15R, 120V (S)
Rear Panel
(2) 5-15R, 120V (S)
(2) 5-20R, 120V (S)
(2) 5-20R, 120V (S)
Other Panels
None
Power Input 1
Voltage
120 Vac
Phase
Single Phase
Frequency
60 Hz
Max Current
20 Amps
Max Load
1.92 KVA
Connection
5-30P, 4 ft cord, 3-wire 10 ga, SO jacket (Rear panel)
Voltage Monitor
None
Current Monitor
None
Power Input 2
Voltage
120 Vac
Phase
Single Phase
Frequency
400 Hz
Max Current
20 Amps
Max Load
1.92 KVA
Connection
10-20P, 4 ft cord, 3-wire 10 ga, SO jacket (Rear panel)
Voltage Monitor
None
Current Monitor
None
Power Protection
Spike/Surge
None
EMI Filter
None
Over Current
(2) 20A Main Breaker
Remote, Interlocks, and Environment Sensors
Local EPO
Yes
Remote EPO Type
None (view Commander UCP panels)
Interlocks
0
Temperature
0
Humidity
0
Communications and Interfaces
Display
None
Serial
None
Ethernet
None
Protocols
None
Physical
Layout
2U
Dimensions
2U x 19" W x 8" D
Materials
Chassis: Steel
Finishes
Chassis: Zinc plated Gold
FrontPanel: Zinc plated Gray
FrontPanel: Zinc plated Gray
Operating Conditions
Temperature
32° to 122° Fahrenheit
Humidity
5% to 85% Relative Humidity
Elevation
6,562 feet
Conformance
Warranty
See warranty page for details
Conformances
no specific certifications
Notes:
Read the product Feature Descriptions for important details. Specifications are subject to change without notice.
[1] Certain details of the circuitry may only be revealed by the schematic (available separately).
[2] All ratings of amps are maximum. See model details for deratings.
[3] Feature codes: Enet = Ethernet, VMtr = volts meter, AMtr = amps meter, rEPO = remote EPO, Seq = outlet sequencing, EMI = EMI filter, Srg = surge suppression
[4] Outlet Codes: (S) = switched, (V) = monitored voltage, (A) = monitored amps. Check Feature Descriptions for details.
