Optima™ PDUs
Product SelectorMPD 41631-002
4U PDU Specs

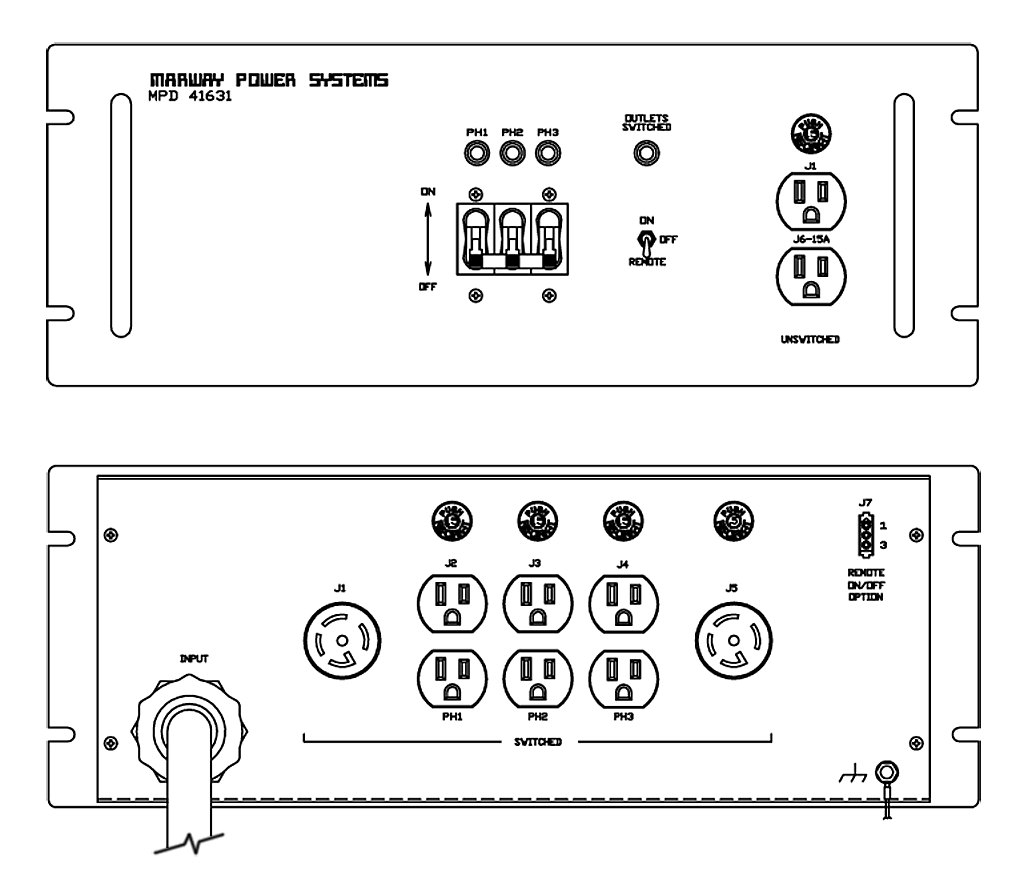

Power Outlets
Front Panel
(2) 5-15R, 120V
Rear Panel
(6) 5-15R, 120V (S)
(2) L21-30R, 120/208V (S)
(2) L21-30R, 120/208V (S)
Other Panels
None


Power Input
Voltage
120/208 Vac
Phase
3-Phase Wye
Frequency
50/60 Hz
Max Current
50 Amps
Max Load
4.80 KVA, 14.39 KVA
Connection
Pigtail, 14 ft cord, 5-wire 6 ga, SOOW jacket (Rear panel)
Voltage Monitor
None
Current Monitor
None
Power Protection
Spike/Surge
Yes
EMI Filter
Yes
Over Current
(1) 50A Circuit Breaker
(4) 15A Circuit Breaker
(4) 15A Circuit Breaker
Remote, Interlocks, and Environment Sensors
Local EPO
None
Remote EPO Type
N.O./None (view Commander UCP panels)
Interlocks
0
Temperature
0
Humidity
0
Communications and Interfaces
Display
None
Serial
None
Ethernet
None
Protocols
None
Physical
Layout
4U
Dimensions
4U x 19" W x 12" D
Materials
Chassis: Steel
Finishes
Chassis: Zinc plated Gold
FrontPanel: Painted Gray
FrontPanel: Painted Gray
Operating Conditions
Temperature
32° to 122° Fahrenheit
Humidity
5% to 85% Relative Humidity
Elevation
6,562 feet
Conformance
Warranty
See warranty page for details
Conformances
no specific certifications
Notes:
Read the product Feature Descriptions for important details. Specifications are subject to change without notice.
[1] Certain details of the circuitry may only be revealed by the schematic (available separately).
[2] All ratings of amps are maximum. See model details for deratings.
[3] Feature codes: Enet = Ethernet, VMtr = volts meter, AMtr = amps meter, rEPO = remote EPO, Seq = outlet sequencing, EMI = EMI filter, Srg = surge suppression
[4] Outlet Codes: (S) = switched, (V) = monitored voltage, (A) = monitored amps. Check Feature Descriptions for details.
